BPM-D01 Automatic External Defibrillator

0 out of 5

Compact and life-saving, the BPM-D01 AED offers real-time voice prompts, automated shock delivery, and easy-to-use interface—ideal for rapid response in cardiac emergencies.

Free shipping on orders over N100,000

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

Share with friends

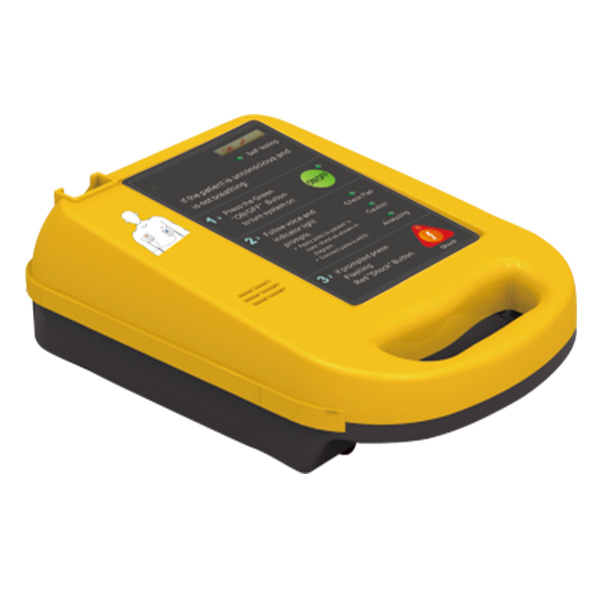

BPM-D01 Automatic External Defibrillator (self-test)

Features:

Three-step defibrillation process;
Two-button operation;
Extensive voice and visual prompts for the operator;
Biphasic energy output;
Lock-out protection to prevent inadvertent defibrillation.
Automatic Self-test:Daily battery condition test&Monthly AED whole inter system test

Specification:

Output	Biphasic Truncated Exponential
Energy Sequence	150J, 150J, 200J
Charge Time	8 sec. to 150J; 10 sec. to 200J (new battery)
Analysis Time	9 sec.
The max. time from the initiation of rhythm analysis to readiness for discharge with a new battery	Less than 20 seconds
The max. time from the initiation of rhythm analysis to readiness for discharge after 6 shocks	Less than 25 seconds
The max. time from the initially switching power on ti readiness for discharge	Less than 30 seconds
Audible Prompts	22 audible prompts
Visual Prompts	LED prompts:Automatic Self-test
Control	Two buttons- On/Off, Shock
Output Energy Accuracy	±15% into any impedance from 25 to 175Ω
Output disabled when the patient impedance is outside limits	20Ω to 200Ω

Battery

Part No.	CR123A-4*2
Non-rechargeable	12V DC, 2.8Ah
Capability	100 discharges at 200 Joules or 120 discharges at 150 Joules
Shelf Life(25℃±15℃)	5 years standby (after installation)

Physical

Dimension	30321689mm
Weight	2kg
Operating Temperature	0~40℃
Operating Humidity	Relative humidity between 30% and 95%(non-condensing)
Storage Temperature (without battery)	-20℃~55℃
Storage Humidity (without battery)	Up to 93%(non-condensing)
